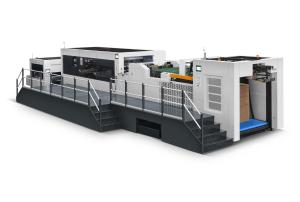

380V 50HZ Automatic Die Cutting Machine 3PH Industrial Die Cutting Machine Customized

Model Number : FB-HT 1650FC/1900FC/2100FC

Brand Name : FINTEECH

Certification : CE

Place of Origin : China

MOQ : 1set

Packaging Details : wooden case

Delivery Time : 20-30 days

Payment Terms : TT/LC

Supply Ability : 10 sets per day

Function : die cutting,stamping,Automatic Die-cutting Machine in electric field,Manual Creasing,High Effieciency

Usage : sticker,trademark,Food Forming Machine,label,heat transfer industry

Automatic grade : Automatic,Semi-Automatic

Size : 1100*800mm,as requirement

Color : Requirement,Optional Color

Contact Now

Features Introduced

Converting System Integration means devices combined in line to reduce the manual work, optimize and speed up the flow of products within a single process. Among different modes of production lines, it is the most popular and practical mode in the global market with higher stability. In this system, the automatic prefeeder is one important part linked with the feeder of automatic diecutter to raise feeding efficiency and relieve the workload of operator at maximum that manual work cannot totally reach. The automatic breaker in line with the delivery unit of diecutter automatically separates blanks from multiple ups and save considerable labor costs compared to manual work. Along with the advantages in efficiency and cost, the system is especially able to be customized at particular client demands, products techniques and processes. Nowadays this sytem has become the new tendency interested by a large number of brand owners in the corrugated board packaging industry.

Technical parameters of paper feeder

Model

FB-HT2100FC

FB-HT1900FC

FB-HT1650FC

Sheel Size

Max. 2100×1600mm
Min. 650×450mm

Max. 1900×1400mm
Min. 650×450mm

Max. 1650×1200mm
Min. 650×450mm

Corrugated Board. Up To

1-9mm

1-9mm

1-9mm

Batch Height

Max. 1800mm

Max. 1800mm

Max. 1800mm

Pile Weight

1400kg

1200kg

1000kg

Machine Weight

5000kg

4500kg

4000kg

Technical parameters of die cutting machine

Model

FB-HT2100FC

FB-HT1900FC

FB-HT1650FC

Max. Sheet Size

2100×1600mm

1900×1400mm

1650×1200mm

Min. Sheet Size

750×650mm

650×500mm

650×500mm

Max. Die Cutting Size

2080×1580mm

1880×1380mm

1630×1180mm

Inner Chase Size

2120×1630mm

1920×1430mm

1670×1230mm

Stock Range

≤9mm corrugated paper,
F, E, B, C, A and AB corrugated paper

≤9mm corrugated paper,
F, E, B, C, A and AB corrugated paper

≤9mm corrugated paper,
F, E, B, C, A and AB corrugated paper

Min. Gripper Waste

10-18mm

10-18mm

10-18mm

Min. Gripper Margin

6-12mm

6-12mm

6-12mm

Cutting Rule Height

23.8mm

23.8mm

23.8mm

Max. Die Cutting Speed

4000s/h

5000s/h

6000s/h

Max. Die Cutting Pressure

450ton

450ton

400ton

Total Power Required

47kw

40kw

38kw

Electrical Power

380V, 50HZ, 3PH

380V, 50HZ, 3PH

380V, 50HZ, 3PH

Mobile Lower Platen Adjusting Range

±1.5mm

±1.5mm

±1.5mm

Machine Dimension

14370×6360×2970mm

13377×6360×2902mm

11638×5254×2776mm

Machine Weight

51T

46T

40T

Sharding machine technical parameters

Model

FB-HT2100FC

FB-HT1900FC

FB-HT1650FC

Sheel Size

Max. 2100mm, Min. 650mm

Max. 1900mm, Min. 650mm

Max. 1650mm, Min. 650mm

Min. Batch Dimension In Machine Direction

200mm

200mm

200mm

Max. Batch Thickness

300mm

300mm

300mm

Min. Batch Thickness

20mm

20mm

20mm

Batch Passage Height From The Floor

900mm (adjustable)

900mm (adjustable)

900mm (adjustable)

Machine Weight

5000kg

4500kg

4000kg
